Isolation and characterization of fMGyn-Pae01, a phiKZ-like jumbo phage infecting Pseudomonas aeruginosa

Virology Journal volume 22, Article number: 55 (2025) Cite this article

Abstract

Background

Pseudomonas aeruginosa is an opportunistic pathogen that causes a wide variety of infections, and belongs to the group of ESKAPE pathogens that are the leading cause of healthcare-associated infections and have high level of antibiotic resistance. The treatment of infections caused by antibiotic-resistant P. aeruginosa is challenging, which makes it a common target for phage therapy. The successful utilization of phage therapy requires a collection of well characterized phages.

Methods

Phage fMGyn-Pae01 was isolated from a commercial phage therapy cocktail. The phage morphology was studied by transmission electron microscopy and the host range was analyzed with a liquid culture method. The phage genome was sequenced and characterized, and the genome was compared to closest phage genomes. Phage resistant bacterial mutants were isolated and whole genome sequencing and motility, phage adsorption and biofilm formation assays were performed to the mutants and host bacterium.

Results

The genomic analysis revealed that fMGyn-Pae01 is a lytic, phiKZ-like jumbo phage with genome size of 277.8 kb. No genes associated with lysogeny, bacterial virulence, or antibiotic resistance were identified. Phage fMGyn-Pae01 did not reduce biofilm formation of P. aeruginosa, suggesting that it may not be an optimal phage to be used in monophage therapy in conditions where biofilm formation is expected. Host range screening revealed that fMGyn-Pae01 has a wide host range among P. aeruginosa strains and its infection was not dependent on O-serotype. Whole genome sequencing of the host bacterium and phage resistant mutants revealed that the mutations had inactivated either a flagellar or rpoN gene, thereby preventing the biosynthesis of a functional flagellum. The lack of functional flagella was confirmed in motility assays. Additionally, fMGyn-Pae01 failed to adsorb on non-motile mutants indicating that the bacterial flagellum is the phage-binding receptor.

Conclusion

fMGyn-Pae01 is a phiKZ-like jumbo phage infecting P. aeruginosa. fMGyn-Pae01 uses the flagellum as its phage-binding receptor, supporting earlier suggestions that flagellum might be utilized by phiKZ but differs from some other previous findings showing that phiKZ-like phages use the type-IV pili as the phage-binding receptor.

Background

Pseudomonas aeruginosa is a gram-negative, rod-shaped bacterium that causes opportunistic infections, including pneumonia, bacteremia, surgical wound infections and burn wound infections, mainly in immunocompromised patients [1,2,3,4]. P. aeruginosa is a member of the ESKAPE (Enterococcus faecium, Staphylococcus aureus, Klebsiella pneumoniae, Acinetobacter baumannii, Pseudomonas aeruginosa and Enterobacter spp) group of pathogens. The members of this group are the leading cause of healthcare-associated infection and are highly antibiotic resistant [1, 5]. P. aeruginosa can bind to various surfaces and form biofilms, which are usually more resistant to antibiotics than planktonic cells and tend to cause chronic infections [6,7,8]. Treatment of P. aeruginosa infections has become increasingly difficult due to its rising resistance towards antibiotics, which makes P. aeruginosa a common target for phage therapy [9, 10].

Bacteriophages (phages) are viruses that infect bacteria. Phages are categorized as lytic or temperate, with the latter group having both lytic and lysogenic life cycles. Phages can target any structural element on the bacterial cell surface [11,12,13] that they can then use as a binding receptor. After adsorption to the receptor, the phage ejects its genome into the bacterial cell thereby starting its life cycle. In the lytic cycle, phages immediately start to replicate their genomes within the bacterium, express their structural proteins and assemble the new virus particles that are released to the environment via cell lysis that kills the host bacterium. In the lysogenic life cycle, the phage genome integrates as a prophage into the host chromosomal DNA and replicates along with it until the prophage is induced to enter the lytic cycle [13, 14]. Phages are natural predators of bacteria and bacteria are able to develop resistance against phages to ensure their own survival. Mutations affecting the phage-binding receptor are most common and these mutations prevent the phage from binding to the bacterial surface [15, 16].

Phages usually have relatively small genomes under 200 kb. Phages with a genome size from 200 kb to 500 kb and > 500 kb are considered jumbo phages and mega phages, respectively [17, 18]. These phages usually have myovirus or siphovirus morphology and large capsids that allow the phages to accommodate their large genomes [19, 20]. Due to their large size, jumbo and mega phages may multiply slower and diffuse shorter distances on soft agar than smaller phages, thus generating tiny plaques that may remain undetected in phage enrichments. Hence, relatively little research has been carried out on them. Compared to smaller phages, jumbo phages carry more genes participating in genome replication and nucleotide metabolism [21, 22].

The first jumbo phage was reported in 1978 when phiKZ, a P. aeruginosa infecting myovirus with a large genome and virion size, was first characterized [23]. PhiKZ and other related phages have dsDNA genomes of approximately 280 kb that contain around 300 protein-encoding open reading frames (ORFs). They typically have head diameters of 105–140 nm and tails of 160–200 nm in length. PhiKZ-like phages have a special structure called the inner body (IB), a rod-like structure inside the capsid consisting of phage proteins, that has an important role during DNA packaging [24,25,26]. A distinct feature of phiKZ-like phages is the formation of a nucleus-like structure during the genome replication, which was first observed in Pseudomonas chlororaphis phage 201f2-1 [27]. The nuclear shell protein forming the structure is called chimallin (ChmA), the presence of which is a hallmark of the viral family Chimalliviridae [28].

In phage therapy, phages are used as alternatives to antibiotics in treating bacterial infections [29,30,31]. Phages used in phage therapy need to be strictly lytic and they should not carry genes encoding bacterial virulence-, toxicity- or antibiotic resistance-associated proteins [32, 33]. Temperate phages should be avoided, as phage therapy relies on phages to destroy the pathogenic bacteria and this feature is abolished with temperate phages turning to lysogenic growth cycle. In addition, prophages can potentially increase bacterial virulence [34].

When testing the sensitivity of Finnish clinical bacterial strains to commercial phage cocktails from Russia and Georgia (unpublished data), we found that one cocktail was effective against a clinical P. aeruginosa strain to which we had no phages. In this study we isolated and characterized this P. aeruginosa infecting phage, fMGyn-Pae01, from the cocktail. In addition, we demonstrated that phage fMGyn-Pae01 uses the P. aeruginosa flagellum as the phage-binding receptor.

Materials and methods

Bacterial strains, phage cocktail and phage isolation

All bacterial strains used in this work are presented in the Supplementary Table S1. Lysogeny Broth (LB) was used as growth medium. LB agar on 9 cm Petri dishes included additionally 1.5% agar and LB soft agar medium included additionally 0.3% agar. All bacteria and phage incubations were carried out at 37 Â°C [35].

fMGyn-Pae01 was isolated in 2019 from a commercial phage cocktail (MicroMir, Phagogyn, production date: September 02, 2016, expiration date: September 2018). A clinical P. aeruginosa strain (S6728) was used as the host strain (Supplementary Table S1). The phage cocktail was serially diluted to 10− 3 in LB and 50 Âµl of each dilution was incubated with the host strain overnight using the double-layer agar method. The host strain was grown in LB until the logarithmic phase was reached and the volume of bacteria mixed with 3 ml of soft agar was calculated from equation µl = 45 ÷ A600, where A600 was measured with Laxco DSM Cell Density Meter. This allowed formation of individual plaques on soft agar from which the phage was isolated using three rounds of plaque purification [35]. Phage titers in lysates were determined as plaque forming units (PFU)/ml based on dilution factor and number of plaques counted on plates.

fMGyn-Pae01 lysates were prepared using both semiconfluent plates and liquid cultures. To collect the phages from semiconfluent soft agar, 3 ml of SMG-buffer (100 mM NaCl, 10mM MgSO4, 50 mM Tris-HCl, pH 7.5, 0.01% (w/v) gelatin) was added to plates and incubated for 1–2 h at room temperature. The soft agar released to SMG buffer was collected and for each 3 ml of the obtained lysate 200 Âµl of chloroform was added and incubated at room temperature for 20 min by gently turning the tube up and down. The lysate was centrifuged at 3000 × g for 10 min or until supernatant was clear. The supernatant was filtered through a 0.2 Î¼m filter. Sucrose was added to 8%. For lysates prepared from liquid cultures, 20 Âµl phage suspension and 200 Âµl of overnight culture of host bacteria were added to 5 ml LB and incubated at 37 Â°C with vigorous agitation for 5 h or until lysis occurred. The lysate was then treated with chloroform, centrifuged, filtered and sucrose was added as mentioned above. Phage titers of 2 × 1011 PFU/ml and 6 × 109 PFU/ml were typically obtained with semiconfluent plates and liquid culture, respectively. Filtered phage lysate in LB was used for the assays unless otherwise stated.

Electron microscopy

For electron microscopy, phage fMGyn-Pae01 was purified with ultrafiltration (Sartorius Vivaspin 300,000 MWCO ultrafiltration tubes) as described earlier [36] and LB was changed to 0.1 M ammonium acetate, pH 7, using the same column. The obtained phage preparation contained 9.4 × 1010 PFU/ml. A 3 Âµl aliquot of the phage preparation was transferred to a carbon-coated copper grid and allowed to absorb for one minute. The grid was stained with 2% uranyl acetate for 30 s. The sample was then examined with a transmission electron microscope (JEOL JEM-1400, Tokyo, Japan) under 80 kV at the Electron Microscopy Unit (Institute of Biotechnology, University of Helsinki, Helsinki, Finland). Pictures were taken using Gatan Orius SC 1000B bottom-mounted Charged Coupled Device (CCD)-camera (Gatan Inc., Pleasanton, CA, USA). Ten virions with contracted, and ten with non-contracted tails, were measured to determine the size and morphology of fMGyn-Pae01. ImageJ (release 1.52o) [37] was used for the measurements.

DNA isolation and genome analysis

Phage DNA was isolated by phenol-chloroform extraction [35] and sequenced by Illumina HiSeq (2 ×x 150 bp) at Eurofins GATC Biotech. For de novo assembly of the genome, a 100,000-read subset was made from the original reads using Chipster [38] at IT Center for Science, Finland (CSC) and used for assembly with A5-miseq [39] (version 0.7.5a-r405) integrated pipeline for the de novo assembly of microbial genomes. PhageTerm [40] (version May 14, 2021) was used to predict the genome termini and the packaging method of the phage. The assembly was verified by mapping all the 19,153,760 original reads against the final genomic sequence with Geneious Prime® (release 2022.1.1). Preliminary annotation was carried out with Prokka [41] (- v1.14.5 at KBase) and the final annotation was performed manually with BLASTp [42] (versions BLAST + 2.13.0 and BLAST + 2.14.0) and HHpred [43] (version 57c8707149031cc9f8edceba362c71a3762bdbf8). The genome was managed with Geneious Prime® (release 2023.2.1) (https://www.geneious.com). The genome was screened for tRNA genes (tRNAscan-SE version 2.0 [44], Aragorn version v1.2.38 [45]), virulence genes (VirulenceFinder version 2.0 [46]) and antibiotic resistance genes (ResFinder version 3.1 [47]). All the bioinformatic tools were applied using standard parameters.

The annotated genomic sequence of fMGyn-Pae01 was deposited in NCBI GenBank under the accession number OR228460.1.

26 closest relatives of fMGyn-Pae01 were identified with Nucleotide BLAST analysis and used for construction of a phylogeny tree and a genome similarity heatmap. Phylogeny analysis was conducted with the VICTOR Virus Classification and Tree Building Online Resource [48] (https://victor.dsmz.de, accessed 21 February 2024) using the Genome-BLAST Distance Phylogeny (GBDP) method [49] under settings recommended for prokaryotic viruses [48]. The resulting intergenomic distances were used to infer a balanced minimum evolution tree with branch support via FASTME including Subtree Pruning and Regrafting (SPR) postprocessing [50] for the formula D0. Branch support was inferred from 100 pseudo-bootstrap replicates each. Trees were rooted at the midpoint [51] and visualized with ggtree [52]. Taxon boundaries at the species, genus and family level were estimated with the OPTSIL program [53], the recommended clustering thresholds [49] and an F value (fraction of links required for cluster fusion) of 0.5 [54]. The phylogenomic tree results as well as suggestions for the classification at the species, genus and family level were all obtained directly from VICTOR and do not necessarily reflect actual ICTV taxonomy. A genome similarity heatmap was generated using the VIRIDIC program (version v1.1) [55]. To create a three-phage genome-wide comparison, GFF3-files were downloaded from GenBank for phages fMGyn-Pae01 (OR228460.1), phiKZ (NC_004629.1) and OMKO1 (ON631220.1) and converted to BED-files in Galaxy Europe web platform (UseGalaxy.eu, Galaxy Version 1.0.1) [56]. The FASTA-files and BED-files were used to create an alignment with DiGAlign [57] (version 2.0). The start position of OMKO1 genome was adjusted to that of fMGyn-Pae01 and phiKZ for illustration purposes. The presence of 21 ORFs belonging to Chimalliviridae core genome and being present only in phages having chimallin [28] was verified with BLASTp (version + 2.16.0).

Host range assay

fMGyn-Pae01 host range was tested on 142 bacterial strains, including 101 P. aeruginosa, 4 Pseudomonas putida, 10 Escherichia coli, 10 Klebsiella pneumoniae, 10 Salmonella typhimurium and 7 Proteus mirabilis strains (Supplementary Table S1). The host range screening was performed with a liquid culture method as previously described with small alterations [58]. Briefly, bacterial overnight cultures were diluted 1:500 in LB except for P. aeruginosa and P. putida that were diluted 1:40 in LB. 10 Âµl of phage lysate (1 × 109 PFU/ml) and 190 Âµl diluted bacterial suspension were pipetted into the Honeycomb2-plate (Growth Curves AB Ltd) wells, corresponding to MOI (multiplicity of infection) of approximately 0.4 for P. aeruginosa and P. putida and approximately 3 for the rest of the strains. A negative control containing bacteria but no phage, a positive control with P. aeruginosa S6728 host strain and phage, and a blank control containing only LB were included to each plate. The samples were analyzed as duplicates. The assay was performed with Bioscreen C analyzer (Growth Curves AB Ltd, Finland) absorbance plate reader. The results were analyzed as previously described at the 10 h timepoint [58]. The blank was subtracted from all samples and the mean was calculated from the two parallel samples. The phage was considered to efficiently infect a given bacterial strain if the absorbance of the culture containing phage and bacteria was < 50% of the negative control containing bacteria but no phage. The phage was considered to infect with low efficiency if the culture absorbance was 50–70% of the negative control and to not infect a given bacterial strain if the culture absorbance was > 70% of the negative control.

Isolation of phage resistant mutants

Phage resistant bacterial mutants were isolated by incubating 50 Âµl of host strain culture (OD600 ∼0.5) with 20 µl fMGyn-Pae01 (6 × 109 PFU/ml) in 5 ml LB at 37 Â°C with vigorous agitation and continued after the culture lysis until new bacterial growth emerged. Samples from the culture were plated on LB agar and incubated at 37 Â°C overnight. Morphologically different single colonies were selected, and the bacterial isolates were purified from residual phage particles by making three sequential pure cultures of each bacterial strain. The resistance of the selected clones to fMGyn-Pae01 was confirmed with the same liquid culture method used in the host range screening assay.

Bacterial DNA extraction, sequencing, and genome analysis

Bacterial DNA was extracted from P. aeruginosa host strain (S6728) and the phage resistant mutants (S6728-M5, S6728-M7, S6728-M8, S6728-M9 and S6728-M10) using the Invitrogen Jetflex Genomic purification kit. The whole genome sequencing (WGS) of the genomic DNA was performed at Novogene UK. The DNA libraries were sequenced using the Illumina paired-end 150 sequencing platform NovaSeq PE150. The trimmed and cleaned raw reads were obtained from Novogene and used for bioinformatics analyses.

Altogether approximately 12.6, 11.0, 14.2, 12.2, 11.4, and 11.4 million reads were received for S6728, S6728-M5, S6728-M7, S6728-M8, S6728-M9, and S6728-M10, respectively. Two million sequencing reads of the wild type strain S6728 were de novo -assembled using the Geneious assembler (Geneious Prime vs. 2023.2.1) resulting in 1342 contigs, 48 of which were longer than 3 kb, with a total sequence length of 6.91 mb. These contigs were used as reference sequences against which all the sequence reads of the phage resistant mutants were mapped using the Geneious assembler. All the SNPs, insertions and deletions against the 48 contigs were identified for each mutant. Those differences that were not common to all mutant strains were regarded as mutations occurring in genes that were the plausible causes for the phage resistance. The corresponding genes were identified from the P. aeruginosa strain 2021CK-01494 genome (GenBank acc no CP124669).

The raw reads of the P. aeruginosa host stain and of the fMGyn-Pae01 resistant mutants were deposited in NCBI Sequence Read Archive (SRA) under the BioProject accession number PRJNA1095914 (Supplementary Table S2).

Motility assay

5 Âµl of overnight bacterial culture was inoculated into LB soft agar (0.4%) plates and incubated overnight. The assay was performed as triplicate for each bacterial strain. The diameter of each colony was measured from three different directions. The means and standard deviations were calculated with OriginPro 2021b (OriginLab Corporation, Northampton, MA, USA) using the three measurement results of all three parallel colonies. Paired-Sample t-Test was used to calculate standard deviations.

Phage adsorption assay

Phage adsorption assay was performed to determine whether the mutations in fMGyn-Pae01 resistant strains affected phage-binding receptors. The host strain and phage resistant mutants were grown until OD600 ∼1.0. Then, 3.2 × 107 PFU of fMGyn-Pae01 was mixed with 500 Âµl of bacteria, corresponding to MOI of approximately 0.1. The suspension was incubated at room temperature for 10 min after which the suspension was centrifuged at 13,000 × g for 3 min at room temperature, and the supernatant was recovered. The supernatant was treated with chloroform (300 Âµl, 15 min), centrifuged as previously, and the phage titer of unabsorbed phages in the supernatant was determined. The titrations were performed in triplicates. LB was used as an adsorption-free control without bacteria.

Biofilm assay

Formation of biofilm was tested for S6728 and fMGyn-Pae01 resistant mutants with and without phage fMGyn-Pae01. Five ml of overnight bacterial culture in Tryptic Soy Broth (TSB, VWR Chemicals) was diluted 1:100 in TSB with 25% bovine plasma (Biowest). Then, 160 Âµl aliquots of this diluted bacterial suspension were pipetted into 96-wellplate wells. To the wells in which the ability of phages to prevent biofilm formation was tested, 10 Âµl of 1 × 108 PFU/ml fMGyn-Pae01 was added before incubation. The assay was performed with six parallel samples. Negative controls without bacteria were also included. The plate was covered with parafilm and a lid, and incubated at 37 Â°C at 30–40 rpm for 48 h. After incubation, the liquid was carefully removed and 50 Âµl of 0.3% crystal violet was pipetted into the wells and incubated for 10 min. The excess crystal violet was removed, and the wells were washed four times with 200 Âµl H2O or until no more crystal violet was present in the wash. 200 Âµl of 95% EtOH was pipetted into the wells and incubated for 5 min. 1:10 dilutions in 95% EtOH were then prepared from the samples and 200 Âµl of each dilution was pipetted in triplicate to a fresh 96-well plate. The absorbance was measured at 540 nm using Hidex Sense Microplate Reader (Hidex, Turku, Finland).

Results and discussion

Phage isolation and morphology

fMGyn-Pae01 was isolated from a commercial phage cocktail. Based on electron microscopy analysis phage fMGyn-Pae01 showed an icosahedral head and a contractile tail (Fig. 1). The measurements of a contracted and non-contracted fMGyn-Pae01 virion are presented in Table 1. The electron microscopy findings revealed that fMGyn-Pae01 had myovirus morphology with dimensions characteristic of jumbo phages [59].

Fig. 1
figure 1

Transmission electron micrograph of fMGyn-Pae01. A purified phage sample was stained with 2% uranyl acetate and examined with a transmission electron microscope. Virions with non-contracted (A) and contracted (B) tails are shown. The morphology and the size of the virion was characteristic of myoviruses and jumbo phages

Full size image
Table 1 Contracted and non-contracted virions were measured to determine the dimensions (nm) of the fMGyn-Pae01 virion
Full size table

fMGyn-Pae01 is a phiKZ-like Jumbo phage

De novo assembly of fMGyn-Pae01 Illumina reads resulted to a single contiq of 277,803 bp genome encoding 358 predicted genes. The read coverage was 21.14 ×, and verification of the assembly by mapping all original reads to the assembled genome with approx. 7,900 read coverage did not reveal any mistakes in the sequence. Due to the large genome size, fMGyn-Pae01 is considered a jumbo phage. PhageTerm analysis did not identify distinct genome termini or packaging system. The preliminary analysis showed that fMGyn-Pae01 was similar to phiKZ, therefore, the reference genome of PhiKZ (GenBank acc no NC004629) was used to identify the genome start point. Genome CG-content was 36.9%. While 32 of the genes were predicted to code virion structural proteins, another 32 gene products were predicted to have functions in replication, recombination, repair, translation and transcription. Finally, 294 gene products were annotated as hypothetical proteins with unknown function. tRNAscan identified 7 tRNAs (Thr, Asn, Asn, Asp, Met, Leu, Pro) located between bp 265,166–270,956 of the genome.

VirulenceFinder and ResFinder did not identify any known gene products similar to virulence-, toxicity- or antibiotic resistance-associated proteins. Additionally, no genes encoding lysogeny-associated proteins were identified and therefore fMGyn-Pae01 meets the current safety requirements for therapeutic phages and is hence considered suitable for phage therapy. This result was expected since the phage was isolated from a product intended for phage therapy.

A comparison of fMGyn-Pae01 genome to 26 closest phage genomes using VIRIDIC showed that the sequence identity was over 93% for the 23 closest genomes (Fig. 2A). The phylogeny tree generated by VICTOR (distance formula D0) showed that phages with the highest sequence identity based on VIRIDIC analysis, clustered together (Fig. 2B). All 26 closest phage genomes belong to Pseudomonas -specific jumbo phages that belong to order Caudoviricetes, of which the 23 closest ones cluster together. The closest relatives of fMGyn-Pae01 have been classified to family Chimalliviridae and genus Phikzvirus that contains three lytic Pseudomonas jumbo phages [60,61,62].

Fig. 2
figure 2

Heat map and phylogeny tree of fMGyn-Pae01 and 26 closest relatives based on nucleotide BLAST. (A) VIRIDIC heat map based on intergenomic similarities between fMGyn-Pae01 and closest relatives. (B) Phylogenetic tree using the distance formula D0, generated by VICTOR. fMGyn-Pae01 indicted with red box

Full size image

Prichard et al. (2023) identified 72 genes forming a core genome in chimallin-encoding phages, 21 out of which can only be found in phages encoding the chimallin protein. They suggested that this set of genes is likely to encode the proteins that form the phage nucleus, even though chimallin is the only protein whose function is currently known [28]. Out of these 21 genes, 20 are found in the phiKZ genome. When comparing these phiKZ gene products to fMGyn-Pae01, all 20 were found to be present in fMGyn-Pae01 with at least 95% amino acid identity to their phiKZ homologs (Table S3). It seems thus very likely that fMGyn-Pae01 forms the phage nucleus during its replication and should be considered as a member of Chimalliviridae family.

To carry out more detailed genomic comparison to closely related phages, a three-phage alignment between fMGyn-Pae01 (OR228460.1), phiKZ (NC_004629.1) and OMKO1 (ON631220.1) was performed with DiGAling. The three genomes align for their whole lengths (Fig. 3), the main differences being small insertions / deletions in genes coding for hypothetical proteins (not shown). The overall genomic identities in BLASTN between fMGyn-Pae01 and phiKZ and OMKO1 were 98.47% and 99.49%, respectively, indicating that the three phages should be regarded as strains of a single species.

Fig. 3
figure 3

Whole-genome alignment of fMGyn-Pae01 (OR228460.1), phiKZ (NC_004629.1) and OMKO1 (ON631220.1). The alignment was performed with DiGAlign [57]. The start-site of OMKO1 genome was adjusted to fMGyn-Pae01 and phiKZ for illustration purposes, and the original start-site in the GenBank sequence is indicated in red

Full size image

fMGyn-Pae01 has a wide host range

To determine the host range of fMGyn-Pae01, the infectivity of the phage was tested against 142 bacterial strains. Of the 101 P. aeruginosa strains used in the host range assay, fMGyn-Pae01 infected efficiently 43 strains (43%) and with low efficiency another 7 strains (7%) (Supplementary Table S1). Serotyping of P. aeruginosa is based on differences among the lipopolysaccharide (LPS) O-antigen side chains. The P. aeruginosa strains used in the assay included the 20 IATS (International Antigen Typing Scheme) O-serotype reference strains and four defined LPS mutants. fMGyn-Pae01 infected efficiently 8 of the 20 IATS-strains and one strain with low efficiency. It also infected the LPS-mutants missing either the O-specific (OSA) or the common polysaccharide (CPA) antigen (strains 6725 and 6726, Supplementary Table S1), but not the rmlC and wbpL mutants that miss both OSA and CPA. These findings indicate that fMGyn-Pae01 has a broad host range, and that the phage sensitivity is not dependent of the O-serotype of the strain. A broad host range is desirable for phages considered for phage therapy. fMGyn-Pae01 did not infect any of the other bacterial species except P. aeruginosa used in the host range assay.

fMGyn-Pae01 utilizes the bacterial flagellum as its receptor

As fMGyn-Pae01 infection was not dependent on O-serotype, to identify the phage receptor, five fMGyn-Pae01 resistant mutants (S6728-M5, -M7, -M8, -M9, -M10) were isolated and subjected to WGS. All mutant strains had genomic changes that differed from the wild type strain S6728 (Table 2). Mutants S6728-M5 and S6728-M7 both had a 25 bp deletion affecting the flagellar flgK-gene and were genetically identical. S6728-M9 and S6728-M10 also had mutations affecting the flagellum biosynthesis. S6728-M9 had a 111 bp deletion affecting the fliC gene and S6728-M10 had a 3 bp substitution affecting the stop codon of fliE. S6728-M8 had a single amino acid substitution in the gene encoding RpoN (sigma factor 54) that has a vital role in regulating traits like nitrogen metabolism, motility and biofilm formation [63, 64].

Table 2 Mutations leading to fMGyn-Pae01 resistance
Full size table

The motility of the wild type strain and the fMGyn-Pae01 resistant mutants was measured on soft agar plates. All phage resistant mutants showed significantly decreased motility compared to the wild type strain (Fig. 4 and Supplementary Table S4). The results of the motility assay confirmed the WGS results indicating that mutations affecting flagellar biosynthesis prevented expression of functional flagellum and hence affected motility of the strains. The single amino acid substitution of RpoN also decreased motility. It is likely, that this substitution inhibits the binding of RpoN to the promoter elements and hence affects the transcription of the flagellar genes. RpoN is a positive regulator of flagellin gene expression and hence essential for the expression functional flagellae [63, 65].

Fig. 4
figure 4

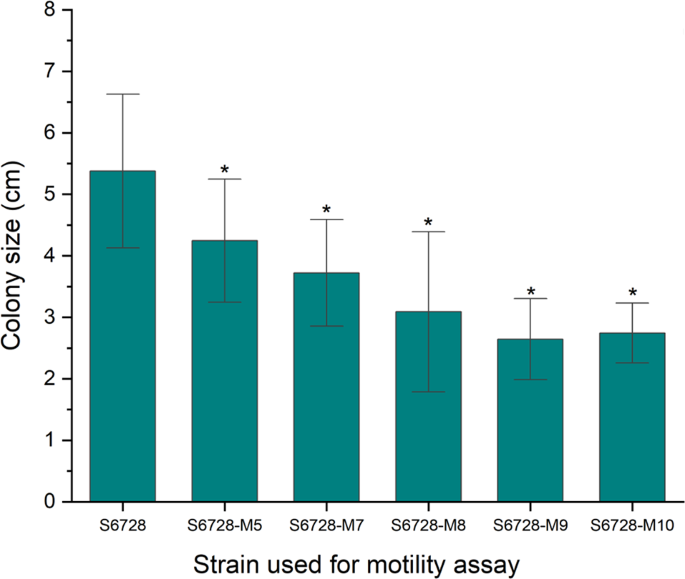

Motility results of host strain and phage resistant mutants. Shown are the diameters of the bacterial colonies after overnight incubation. All phage resistant mutants had decreased motility compared to host strain. Symbol * indicates that the values are significantly different (p < 0.05). Calculations and visualization were performed with OriginPro 2021b (OriginLab Corporation, Northampton, MA, USA). Paired-Sample t-Test was used to calculate standard deviations

Full size image

Adsorption of fMGyn-Pae01 to host strain S6728 and phage resistant bacterial mutants S6728-M5, S6728-M7, S6728-M8, S6728-M9 and S6728-M10 was determined to clarify whether the mutations affected the phage receptors (Fig. 5). fMGyn-Pae01 successfully adsorbed to host strain but was not able to adsorb to any of the phage resistant strains, indicating that fMGyn-Pae01 uses the bacterial flagellum as phage receptor to initiate infection. This finding is supported by earlier studies showing that phiKZ-like phages have one distinct DNA injection site close to the cell pole, which has led to suggestion that these phages might use a polarly localized receptor such as flagellum as their receptor [66] and a preprint by Li et al. (2022) showing that flagellum is needed for phiKZ attachment [67]. On the other hand, some PhiKZ-like phages have previously been identified to be type-IV pili dependent [68] and the infection of OMKO1 was shown to be inhibited in a DoprM knockout mutant, which led to hypothesis that outer membrane porin M (OprM) may be the phage receptor [69]. However, even though OprM was shown to be needed for OMKO1 infection, the authors did not perform an adsorption assay to analyze if also phage adsorption was abolished in the DoprM strain. As tail fiber proteins of fMGyn-Pae01 and OMKO1 are 100% identical (not shown), it is likely that flagellum is the primary attachment receptor for OMKO1 as well. To date, there are only few published studies showing that jumbo phages or P. aeruginosa specific phages would bind to the bacterial flagellum. A review by Esteves and Scharf in 2022 [70] summarizes that flagellotropic phages infect both gram-negative and gram-positive bacteria. In their review, the only flagellotropic jumbo phages were PBS1 infecting Bacillus subtilis and FCbK infecting Caulobacter crescentus. Only one P. aeruginosa specific phage, phiCTX having a 35.6 kb genome, was identified to use the bacterial flagellum as its binding receptor [71,72,73,74]. Furthermore, at least one flagellotropic jumbo phage infecting Klebsiella aerogenes has been identified after the review by Esteves and Scharf was published [75]. In addition to type-IV pili and flagella, LPS and capsular polysaccharides has been identified as binding receptors used by jumbo phages [76,77,78].

Fig. 5
figure 5

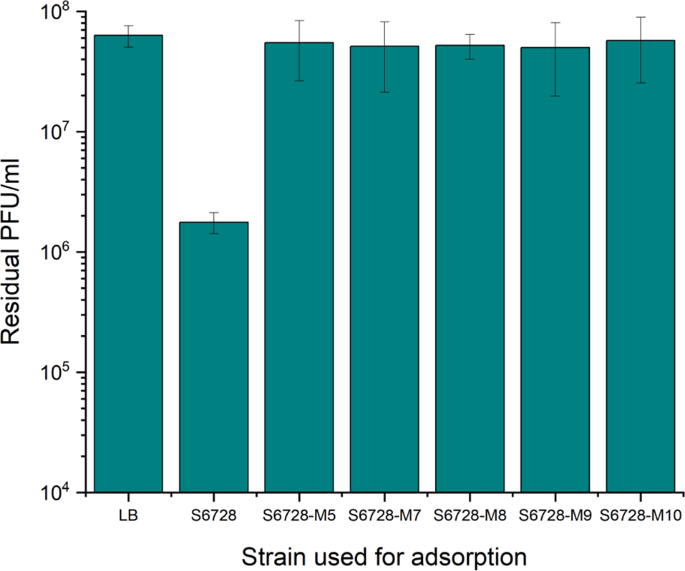

Adsorption of fMGyn-Pae01 to wild type P. aeruginosa strain and to phage resistant mutants. Shown are the titers of non-adsorbed phages in the supernatants after incubation with the bacterial strains. LB indicates an adsorption-free control without bacteria. fMGyn-Pae01 successfully adsorbed on host strain S6728 but not to the phage resistant mutants. Calculations and visualization were performed with OriginPro 2021b (OriginLab Corporation, Northampton, MA, USA)

Full size image

Using flagellotropic phages in therapeutic phage cocktails can be advantageous in many ways: Motility is an important virulence factor for many bacteria, thus, the phage resistant mutants emerging during the therapy are likely to be less virulent. Second, flagellar motility is a very energy-consuming process, which directs flagellotropic phages to select for host cells having high fitness and providing optimal capacity for phage replication. Third, rotating flagellum covers a wide area, which improves the likelihood of the phage to find the bacterial cell [75]. Fourth, as all known bacterial flagellins share a certain conserved domain architecture [70, 79], one can hypothesize that binding to flagella may provide broader host range when compared to LPS/capsule -specific phages.

fMGyn-Pae01 does not prevent biofilm formation

The ability to form biofilm was assessed for the wild type strain and the phage resistant mutants (Fig. 6). All bacterial strains formed biofilm to some degree. Interestingly, mutants S6728-M5, S6728-M7 and S6728-M8 formed slightly more, and mutants S6728-M9 and S6728-M10, formed equal or slightly less biofilm compared to wild type strain.

The potential of fMGyn-Pae01 to inhibit biofilm formation was also evaluated (Fig. 6). Previously, phages have been reported to inhibit biofilm formation presumably using polysaccharide depolymerases that degrade extracellular polymeric substances forming extracellular matrix protecting bacterial cells [80]. The results obtained in this study, however, showed that fMGyn-Pae01 did not have any inhibitory effect on biofilm formation. Interestingly, on the contrary, fMGyn-Pae01 increased slightly, but not significantly, biofilm formation in the wild type strain. In BLASTp analysis, the tail fiber protein identified in the genome of fMGyn-Pae01 (protein id WNV47846.1) had putative collagen-like conserved domains and no similarity to depolymerases, which is a logical finding for a phage using a filamentous protein as its receptor. Furthermore, no halo was detected around the phage plaques. All the findings thus support the conclusion that fMGyn-Pae01 does not have anti-biofilm activity. However, when analysing the results of the biofilm assay, one should keep in mind that some of the formed biofilms were poorly attached to the bottom of the well or were free-floating and slimy. This affected the staining and washing of the biofilms and thus could have affected the results obtained in the assay even though the assay was performed with six parallel samples. The technical challenges in the assay can be seen as a high margin of error, and not too definitive conclusions should be made based on these results.

Fig. 6
figure 6

Biofilm assay results. Biofilm formation of wild type strain and phage resistant mutant strains was evaluated as well as and the ability of fMGyn-Pae01 to inhibit biofilm formation. The green bars show biofilm formation in the absence of fMGyn-Pae01, and grey bars show the results in the presence of fMGyn-Pae01. Calculations and visualization were performed with OriginPro 2021b (OriginLab Corporation, Northampton, MA, USA)

Full size image

RpoN has previously been identified to be necessary also for biofilm formation [63, 80, 81]. However, the results obtained from the biofilm assay in this study indicated that a fully functional RpoN is not needed for biofilm formation. Although the single amino acid substitution affecting RpoN in S6728-M8 affected the biosynthesis of functional flagellum, it did not inhibit the strain from producing biofilm.

Conclusion

A lytic, phiKZ-like jumbo phage, fMGyn-Pae01, was isolated from a commercial phage cocktail. The isolated phage has a wide host range, although out of the bacterial panel tested in this work, it only infected strains belonging to P. aeruginosa species. The phage uses the bacterial flagellum as its phage-binding receptor, which supports earlier suggestions that flagellum might be utilized by phiKZ but differs from some other previous findings showing that phiKZ-like phages use the type-IV pili as the phage-binding receptor. No genes encoding bacterial virulence-, toxicity-, antibiotic resistance- or lysogeny-associated proteins were identified, confirming that fMGyn-Pae01 can be considered safe for phage therapy. On the other hand, fMGyn-Pae01 did not inhibit the biofilm formation of bacteria, which may reduce the therapeutic potential of fMGyn-Pae01 if used as a monophage in diseases where biofilms are considered high risk. However, the broad host range which does not depend on the O-serotype of the P. aeruginosa strain and the facts that fMGyn-Pae01 was isolated from a commercial phage therapy cocktail and the highly similar phage OMKO1 has been successfully used for phage therapy of a patient having aortic graft infection [82], support the conclusion that fMGyn-Pae01 is suitable for phage therapy.

Data availability

The annotated genomic sequence of fMGyn-Pae01 was deposited in NCBI GenBank under the accession number OR228460.1. The raw reads of the P. aeruginosa host stain and of the fMGyn-Pae01 resistant mutants were deposited in NCBI Sequence Read Archive (SRA) under the BioProject accession number PRJNA1095914.
